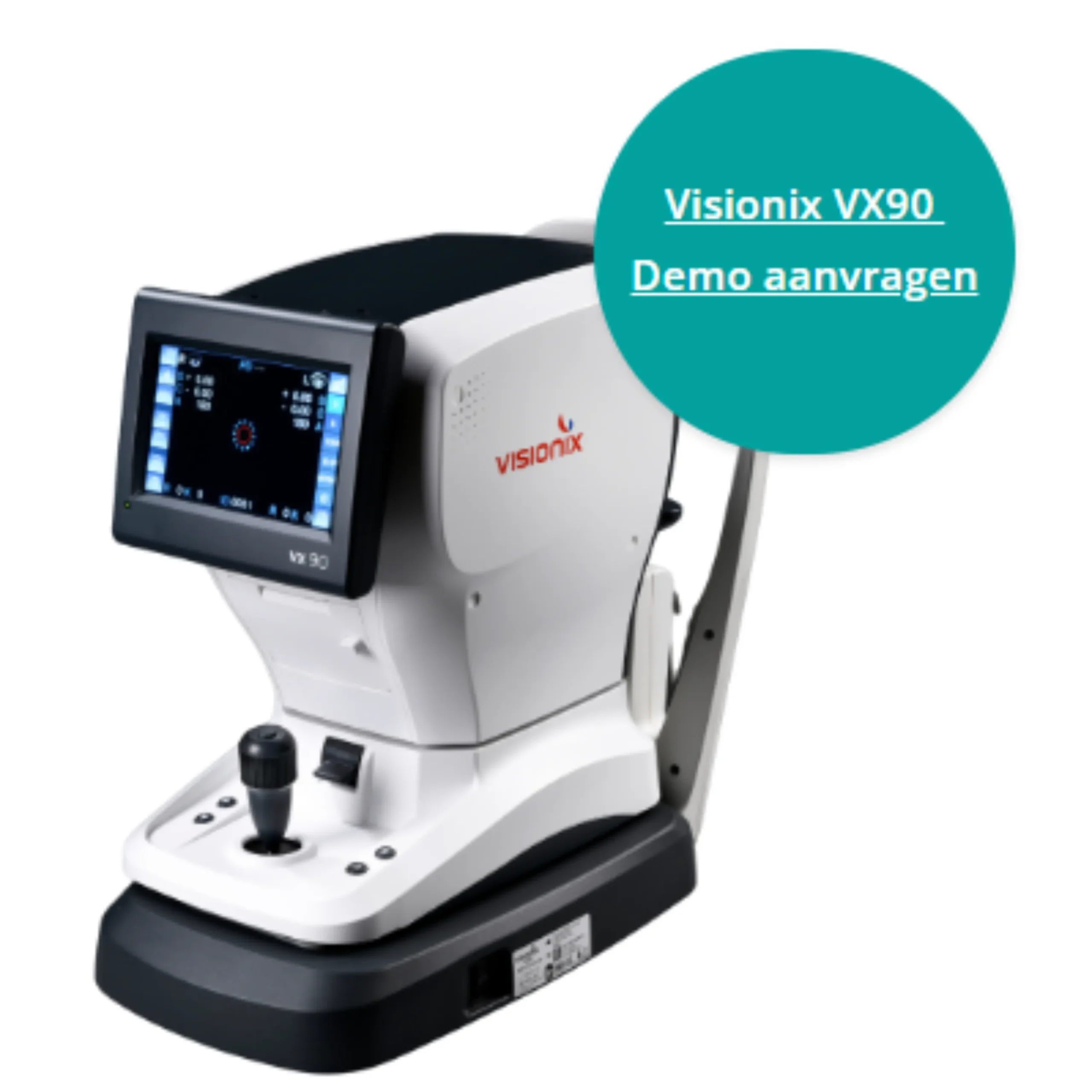

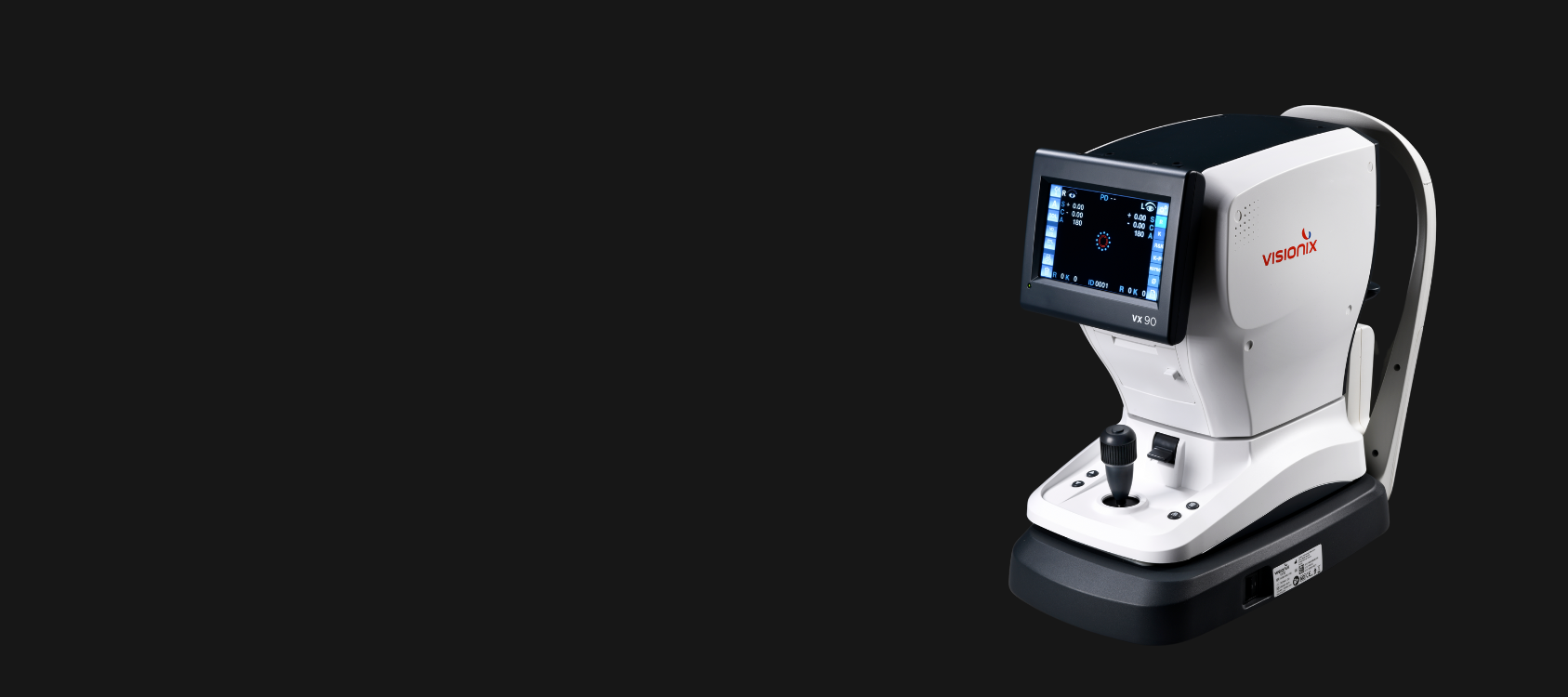

De VX90 is een diagnostisch apparaat met refractie- en keratometriefunctie. Een bewegend fixatie target met automatische verneveling zorgt voor een nauwkeurige refractie.
De VX90 is autrefractor-keratometer waarmee op eenvoudige wijze nauwkeurige resultaten kunnen worden gegenereerd. Door tegenlicht te gebruiken kan de aanwezigheid van cataract in beeld worden gebracht.
De VX90 meet de keratometrie, de objectieve refractie van het oog met bol, cilinder en as en beschikt over tegenlicht voor interne opaciteitsdetectie.
Specificaties
Dimensions | 288 (w) x 500 (d) x 480 (h) |
Weight | 14 kg |
Measurement specification | |
Power Range | -20 D à +20 D |
Power Accuracy | +/- 0.25 D |
Astigmatism range | 0 to 10D |
Astigmatism accuracy | 0.25 D 0.25 D |
Axis | 0 ~ 180° |
Axis step | 1° |
Pupil diameter measured | Ø 2 mm |
Peripheral keratometry | Nasal, temporal, up, down |
Keratometry specifications | |
Corneal refractory power | 33D to 67D (n=1.3375) |
Corneal radius range | 5 mm to 10 mm |
Corneal astigmatic power | 0 to 12 D |
Astigmatism accuracy | 0.02D |
Axis range | 1 ~ 180° (1° is not a usable value) |
Measurement diameter | 2.0 ~12.0 mm |
General data | |
Measurement data recording | Built-in thermal printer |
Measurement data display | 7” TFT color LCD with touch screen (800×480) |
Power source, power consumption | 110V-240V AC, 50/60 Hz, 300W |
External output terminal | RS232 – Wifi |
Standards | Compliance with Medical Device Directive 93/42/EC / Medical device marked CE0120 class 1m |
